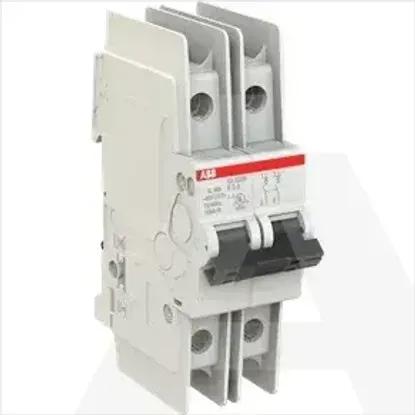

2CDS272337R0357 | SU202M-K5
Code: 2002809
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Release characteristicK
Rated voltage440V
Pollution degree3
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Concurrently switching neutral conductorNo
Rated current5A
Degree of protection (IP)IP20
Current limiting class3
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Width in number of modular spacings2
Voltage typeAC/DC
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Over voltage category3
Number of poles (total)2
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
Additional equipment possibleYes
Built-in depth69mm
Number of protected poles2
