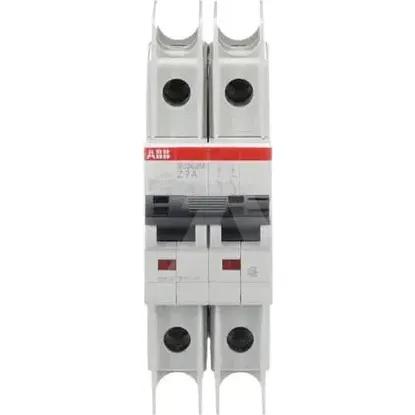

2CDS272337R0388 | SU202M-Z7
Code: 2002814
ManufacturerABB
Catalog number2CDS272337R0388
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779933155
Details
- •MINIJATURNI PREKIDAC
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Current limiting class3
Voltage typeOther
Pollution degree3
Over voltage category3
Number of protected poles2
Power loss3W
Built-in depth69mm
Frequency50 - 60Hz
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated voltage480V
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Degree of protection (IP)IP20
Width in number of modular spacings2
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Ambient temperature during operating-25 - 55°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Rated current7A
Release characteristicZ
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
