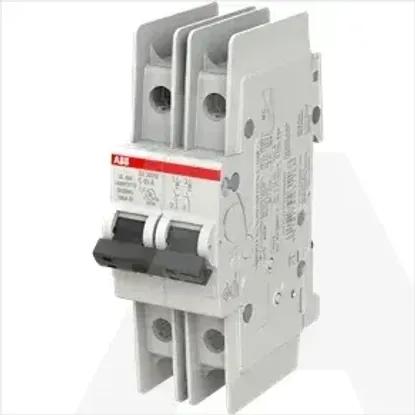

2CDS272337R0404 | SU202M-C40

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Number of protected poles

2

Rated current

40A

Concurrently switching neutral conductor

No

Rated voltage

440V

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Rated insulation voltage Ui

440V

Release characteristic

C

Additional equipment possible

Yes

Number of poles (total)

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Suitable for flush-mounted installation

No

Current limiting class

3

Voltage type

AC/DC

Built-in depth

69mm

Frequency

50 - 60Hz

Pollution degree

3

Width in number of modular spacings

2

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

0 - 25mm²

Over voltage category

3

Connectable conductor cross section solid-core

0 - 35mm²

Ambient temperature during operating

-25 - 55°C
