Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Rated current8A
Built-in depth69mm
Rated voltage440V
Frequency50 - 60Hz
Suitable for flush-mounted installationNo
Width in number of modular spacings2
Number of protected poles2
Over voltage category3
Current limiting class3
Concurrently switching neutral conductorNo
Release characteristicK
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Pollution degree3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Ambient temperature during operating-25 - 55°C
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Additional equipment possibleYes
Connectable conductor cross section solid-core0 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

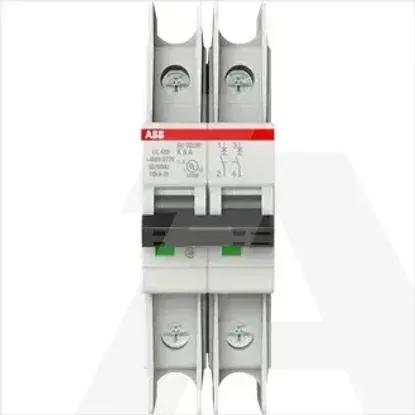

2CDS272337R0407 | SU202M-K8
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
AC/DC
Rated current
8A
Built-in depth
69mm
Rated voltage
440V
Frequency
50 .. 60Hz
Suitable for flush-mounted installation
Width in number of modular spacings
2
Number of protected poles
2
Over voltage category
3
Current limiting class
3
Concurrently switching neutral conductor
Release characteristic
K
Degree of protection (IP)
IP20
Rated insulation voltage Ui
440V
Pollution degree
3
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Ambient temperature during operating
-25 .. 55°C
Number of poles (total)
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2kA
Connectable conductor cross section multi-wired
0 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Additional equipment possible
Connectable conductor cross section solid-core
0 .. 35mm²
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
