Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Frequency50 - 60Hz
Suitable for flush-mounted installationNo
Pollution degree3
Built-in depth69mm
Rated voltage440V
Width in number of modular spacings2
Release characteristicZ
Rated insulation voltage Ui440V
Over voltage category3
Number of protected poles2
Degree of protection (IP)IP20
Current limiting class3
Rated current10A
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Number of poles (total)2
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

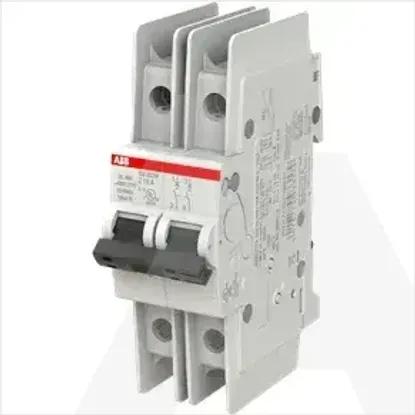

2CDS272337R0428 | SU202M-Z10
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
AC/DC
Frequency
50 .. 60Hz
Suitable for flush-mounted installation
Pollution degree
3
Built-in depth
69mm
Rated voltage
440V
Width in number of modular spacings
2
Release characteristic
Z
Rated insulation voltage Ui
440V
Over voltage category
3
Number of protected poles
2
Degree of protection (IP)
IP20
Current limiting class
3
Rated current
10A
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
0 .. 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Number of poles (total)
2
Ambient temperature during operating
-25 .. 55°C
Connectable conductor cross section multi-wired
0 .. 25mm²
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated impulse withstand voltage Uimp
4kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
