Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Release characteristicZ
Current limiting class3
Rated voltage440V
Suitable for flush-mounted installationNo
Number of protected poles2
Pollution degree3
Voltage typeAC/DC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated current13A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Width in number of modular spacings2
Connectable conductor cross section solid-core0 - 35mm²
Degree of protection (IP)IP20
Built-in depth69mm
Over voltage category3
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

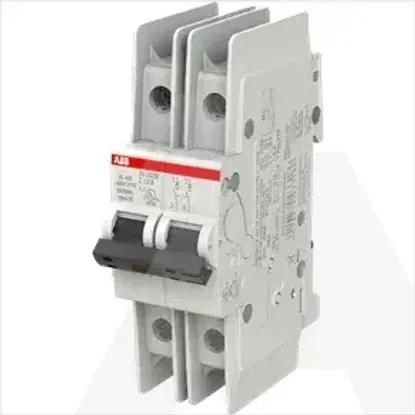

2CDS272337R0448 | SU202M-Z13
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Release characteristic
Z
Current limiting class
3
Rated voltage
440V
Suitable for flush-mounted installation
Number of protected poles
2
Pollution degree
3
Voltage type
AC/DC
Rated insulation voltage Ui
440V
Frequency
50 .. 60Hz
Rated current
13A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2kA
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Concurrently switching neutral conductor
Ambient temperature during operating
-25 .. 55°C
Connectable conductor cross section multi-wired
0 .. 25mm²
Width in number of modular spacings
2
Connectable conductor cross section solid-core
0 .. 35mm²
Degree of protection (IP)
IP20
Built-in depth
69mm
Over voltage category
3
Number of poles (total)
2
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
