Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Number of poles (total)2
Number of protected poles2
Release characteristicK
Rated insulation voltage Ui440V
Rated voltage440V
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current15A
Frequency50 - 60Hz
Suitable for flush-mounted installationNo
Current limiting class3
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Pollution degree3
Ambient temperature during operating-25 - 55°C
Width in number of modular spacings2
Degree of protection (IP)IP20
Built-in depth69mm
Connectable conductor cross section multi-wired0 - 25mm²
Over voltage category3
Connectable conductor cross section solid-core0 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS272337R0457 | SU202M-K15

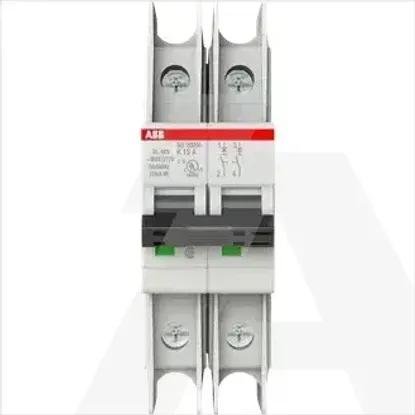

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Number of poles (total)

2

Number of protected poles

2

Release characteristic

K

Rated insulation voltage Ui

440V

Rated voltage

440V

Voltage type

AC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Rated current

15A

Frequency

50 .. 60Hz

Suitable for flush-mounted installation

Current limiting class

3

Concurrently switching neutral conductor

Additional equipment possible

Pollution degree

3

Ambient temperature during operating

-25 .. 55°C

Width in number of modular spacings

2

Degree of protection (IP)

IP20

Built-in depth

69mm

Connectable conductor cross section multi-wired

0 .. 25mm²

Over voltage category

3

Connectable conductor cross section solid-core

0 .. 35mm²
