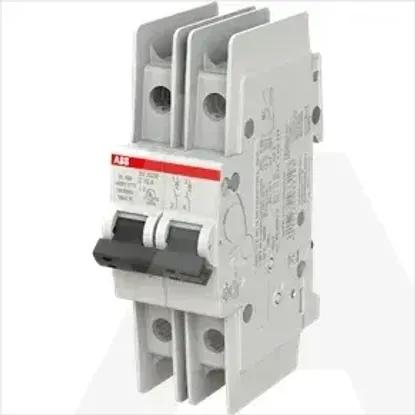

2CDS272337R0458 | SU202M-Z15
Code: 2002823
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Release characteristicZ
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated voltage440V
Rated insulation voltage Ui440V
Voltage typeAC/DC
Frequency50 - 60Hz
Number of poles (total)2
Number of protected poles2
Over voltage category3
Concurrently switching neutral conductorNo
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Width in number of modular spacings2
Built-in depth69mm
Pollution degree3
Connectable conductor cross section solid-core0 - 35mm²
Rated current15A
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Additional equipment possibleYes
