Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated insulation voltage Ui440V
Release characteristicC
Number of poles (total)2
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Current limiting class3
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Voltage typeAC/DC
Over voltage category3
Width in number of modular spacings2
Ambient temperature during operating-25 - 55°C
Additional equipment possibleYes
Rated current50A
Built-in depth69mm
Connectable conductor cross section solid-core0 - 35mm²
Connectable conductor cross section multi-wired0 - 25mm²
Pollution degree3
Degree of protection (IP)IP20
Rated voltage440V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

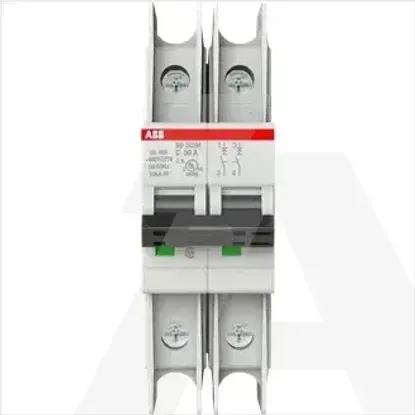

2CDS272337R0504 | SU202M-C50
