Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Number of poles (total)2
Release characteristicZ
Number of protected poles2
Rated current25A
Rated voltage440V
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Suitable for flush-mounted installationNo
Voltage typeAC/DC
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Current limiting class3
Concurrently switching neutral conductorNo
Over voltage category3
Pollution degree3
Additional equipment possibleYes
Width in number of modular spacings2
Degree of protection (IP)IP20
Built-in depth69mm
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

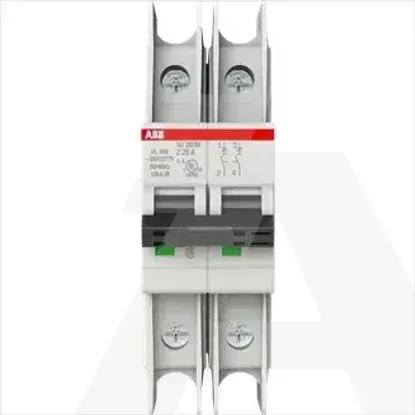

2CDS272337R0518 | SU202M-Z25
