Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated current30A
Built-in depth69mm
Voltage typeAC/DC
Rated voltage440V
Current limiting class3
Release characteristicK
Frequency50 - 60Hz
Over voltage category3
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Number of protected poles2
Pollution degree3
Connectable conductor cross section multi-wired0 - 25mm²
Number of poles (total)2
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Width in number of modular spacings2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS272337R0527 | SU202M-K30

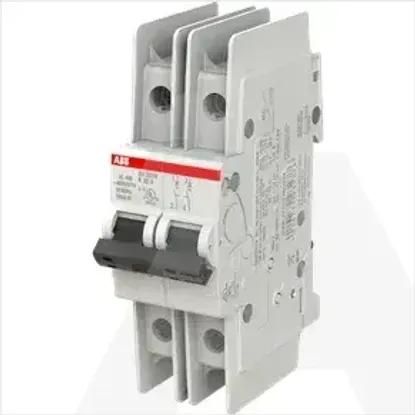

Main Product Image
