Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Release characteristicK
Rated current32A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Rated voltage440V
Number of poles (total)2
Over voltage category3
Rated insulation voltage Ui440V
Current limiting class3
Number of protected poles2
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Voltage typeAC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Pollution degree3
Frequency50 - 60Hz
Built-in depth69mm
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0 - 35mm²
Degree of protection (IP)IP20
Width in number of modular spacings2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS272337R0537 | SU202M-K32

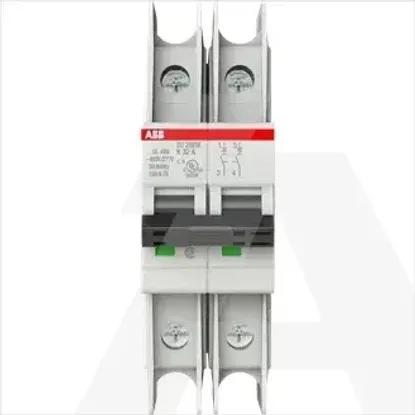

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Release characteristic

K

Rated current

32A

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Rated voltage

440V

Number of poles (total)

2

Over voltage category

3

Rated insulation voltage Ui

440V

Current limiting class

3

Number of protected poles

2

Concurrently switching neutral conductor

Additional equipment possible

Suitable for flush-mounted installation

Voltage type

AC/DC

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Pollution degree

3

Frequency

50 .. 60Hz

Built-in depth

69mm

Connectable conductor cross section multi-wired

0 .. 25mm²

Ambient temperature during operating

-25 .. 55°C

Connectable conductor cross section solid-core

0 .. 35mm²

Degree of protection (IP)

IP20

Width in number of modular spacings

2
