Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Current limiting class3
Voltage typeAC/DC
Frequency50 - 60Hz
Release characteristicZ
Built-in depth69mm
Rated insulation voltage Ui440V
Rated current32A
Rated voltage440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Width in number of modular spacings2
Connectable conductor cross section solid-core0 - 35mm²
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Number of poles (total)2
Connectable conductor cross section multi-wired0 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Ambient temperature during operating-25 - 55°C
Pollution degree3
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Concurrently switching neutral conductorNo
Over voltage category3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS272337R0538 | SU202M-Z32

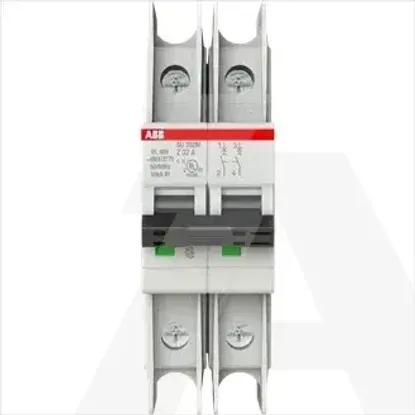

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Current limiting class

3

Voltage type

AC/DC

Frequency

50 .. 60Hz

Release characteristic

Z

Built-in depth

69mm

Rated insulation voltage Ui

440V

Rated current

32A

Rated voltage

440V

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Width in number of modular spacings

2

Connectable conductor cross section solid-core

0 .. 35mm²

Number of protected poles

2

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Number of poles (total)

2

Connectable conductor cross section multi-wired

0 .. 25mm²

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Suitable for flush-mounted installation

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Ambient temperature during operating

-25 .. 55°C

Pollution degree

3

Degree of protection (IP)

IP20

Rated impulse withstand voltage Uimp

4kV

Concurrently switching neutral conductor

Over voltage category

3
