Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC/DC
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Frequency50 - 60Hz
Built-in depth69mm
Degree of protection (IP)IP20
Current limiting class3
Number of protected poles2
Rated current40A
Release characteristicK
Pollution degree3
Over voltage category3
Rated voltage440V
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired0 - 25mm²
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Number of poles (total)2
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS272337R0557 | SU202M-K40

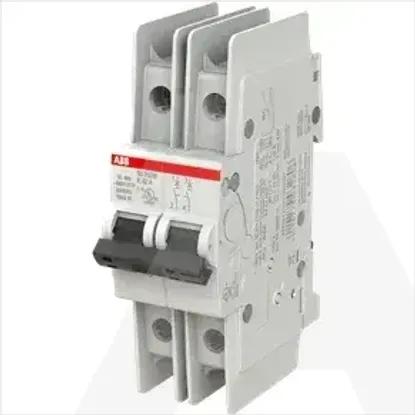

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Voltage type

AC/DC

Concurrently switching neutral conductor

Width in number of modular spacings

2

Frequency

50 .. 60Hz

Built-in depth

69mm

Degree of protection (IP)

IP20

Current limiting class

3

Number of protected poles

2

Rated current

40A

Release characteristic

K

Pollution degree

3

Over voltage category

3

Rated voltage

440V

Rated insulation voltage Ui

440V

Connectable conductor cross section multi-wired

0 .. 25mm²

Additional equipment possible

Ambient temperature during operating

-25 .. 55°C

Number of poles (total)

2

Connectable conductor cross section solid-core

0 .. 35mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated impulse withstand voltage Uimp

4kV
