Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Number of protected poles2
Rated current50A
Release characteristicZ
Additional equipment possibleYes
Rated voltage440V
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)2
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Current limiting class3
Pollution degree3
Width in number of modular spacings2
Concurrently switching neutral conductorNo
Over voltage category3
Suitable for flush-mounted installationNo
Built-in depth69mm
Ambient temperature during operating-25 - 55°C
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

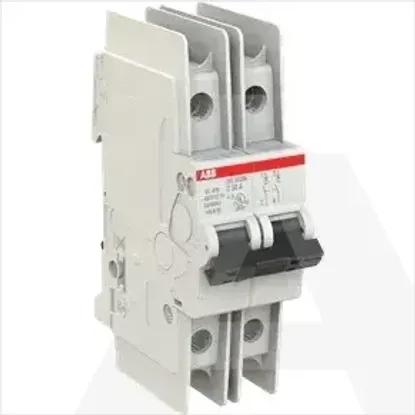

2CDS272337R0578 | SU202M-Z50
