Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage440V
Voltage typeAC/DC
Built-in depth69mm
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Pollution degree3
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Width in number of modular spacings2
Rated insulation voltage Ui440V
Number of protected poles2
Current limiting class3
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Connectable conductor cross section solid-core0 - 35mm²
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0 - 25mm²
Rated current63A
Release characteristicK
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

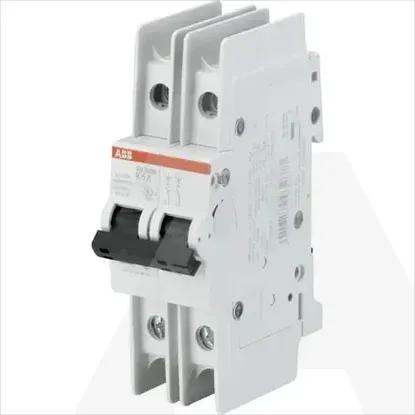

2CDS272337R0607 | SU202M-K63
