Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Release characteristicC
Number of poles (total)2
Rated insulation voltage Ui440V
Rated current1.6A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated voltage440V
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Voltage typeAC/DC
Current limiting class3
Width in number of modular spacings2
Frequency50 - 60Hz
Over voltage category3
Pollution degree3
Degree of protection (IP)IP20
Additional equipment possibleYes
Built-in depth69mm
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0 - 35mm²
Connectable conductor cross section multi-wired0 - 25mm²
Number of protected poles2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

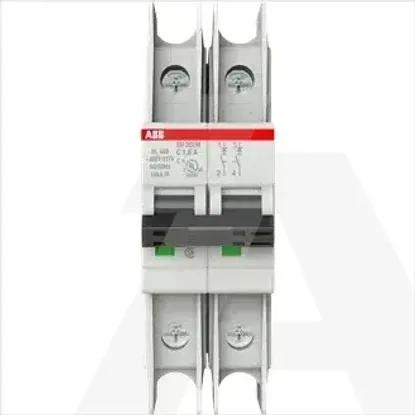

2CDS272337R0974 | SU202M-C1.6

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Release characteristic

C

Number of poles (total)

2

Rated insulation voltage Ui

440V

Rated current

1.6A

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Rated voltage

440V

Concurrently switching neutral conductor

Suitable for flush-mounted installation

Voltage type

AC/DC

Current limiting class

3

Width in number of modular spacings

2

Frequency

50 .. 60Hz

Over voltage category

3

Pollution degree

3

Degree of protection (IP)

IP20

Additional equipment possible

Built-in depth

69mm

Ambient temperature during operating

-25 .. 55°C

Connectable conductor cross section solid-core

0 .. 35mm²

Connectable conductor cross section multi-wired

0 .. 25mm²

Number of protected poles

2
