Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Rated current0.5A
Rated voltage400V
Release characteristicK
Over voltage category3
Explosion-proofNo
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss2.8W
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Flush-mounted installationNo
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Width in number of modular spacings2.0
Number of poles (total)2
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Pollution degree3
Number of protected poles2
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

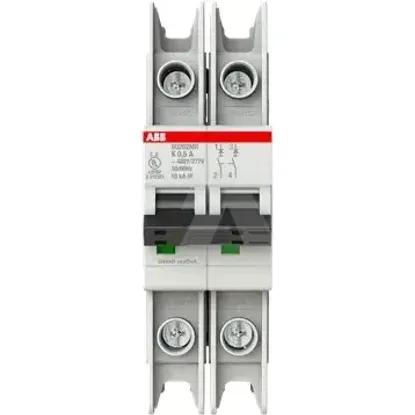

2CDS272347R0157 | SU202MR-K0.5
