Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of poles (total)2
Release characteristicK
Voltage typeOther
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Frequency50 - 60Hz
Rated impulse withstand voltage Uimp4kV
Number of protected poles2
Power loss2.8W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated current1A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Current limiting class3
Rated voltage400V
Flush-mounted installationNo
Over voltage category3
Additional equipment possibleYes
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Explosion-proofNo
Pollution degree3
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

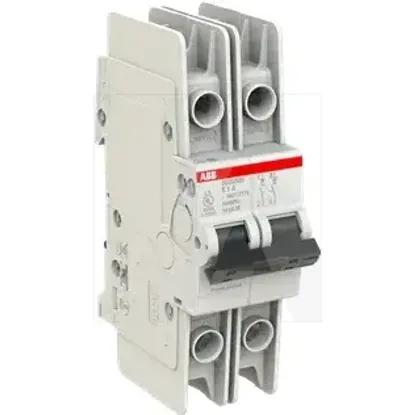

2CDS272347R0217 | SU202MR-K1
