Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Explosion-proofNo
Rated current2A
Release characteristicK
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles2
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0.75 - 35mm²
Current limiting class3
Built-in depth69mm
Power loss3.6W
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Over voltage category3
Rated voltage400V
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Additional equipment possibleYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

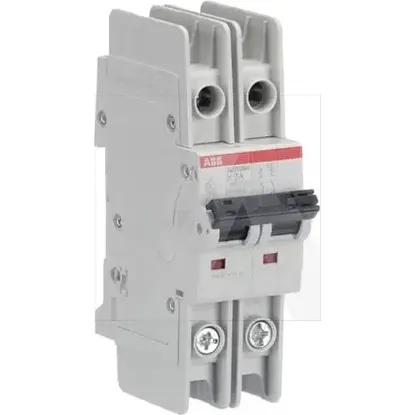

2CDS272347R0277 | SU202MR-K2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Explosion-proof
Rated current
2A
Release characteristic
K
Pollution degree
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Number of protected poles
2
Ambient temperature during operating
-25 .. 55°C
Connectable conductor cross section solid-core
0.75 .. 35mm²
Current limiting class
3
Built-in depth
69mm
Power loss
3.6W
Width in number of modular spacings
2.0
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Over voltage category
3
Rated voltage
400V
Rated insulation voltage Ui
440V
Frequency
50 .. 60Hz
Additional equipment possible
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Flush-mounted installation
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
