Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Rated current4A
Voltage typeOther
Rated voltage400V
Frequency50 - 60Hz
Built-in depth69mm
Rated insulation voltage Ui440V
Power loss3.6W
Degree of protection (IP)IP20
Explosion-proofNo
Width in number of modular spacings2.0
Number of protected poles2
Pollution degree3
Current limiting class3
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 55°C
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)2
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

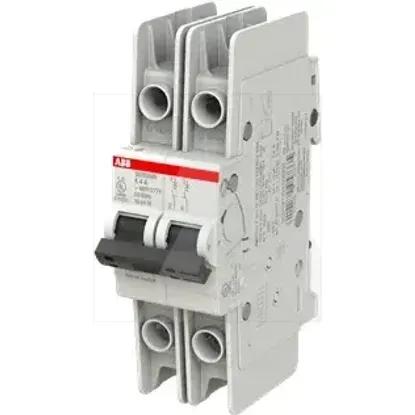

2CDS272347R0337 | SU202MR-K4
