Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Number of protected poles2
Built-in depth69mm
Number of poles (total)2
Rated insulation voltage Ui440V
Rated voltage400V
Rated current5A
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Current limiting class3
Voltage typeOther
Power loss2.6W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-25 - 55°C
Degree of protection (IP)IP20
Explosion-proofNo
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Over voltage category3
Concurrently switching neutral conductorNo
Width in number of modular spacings2.0
Additional equipment possibleYes
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

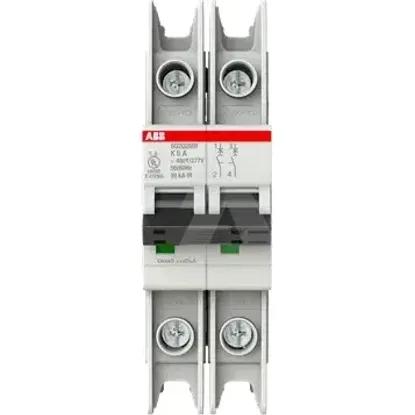

2CDS272347R0357 | SU202MR-K5
