Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Rated current8A
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Current limiting class3
Built-in depth69mm
Voltage typeOther
Rated voltage400V
Frequency50 - 60Hz
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Power loss3W
Release characteristicK
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Additional equipment possibleYes
Over voltage category3
Width in number of modular spacings2.0
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Flush-mounted installationNo
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

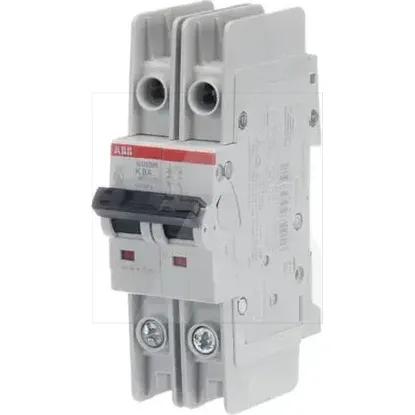

2CDS272347R0407 | SU202MR-K8
