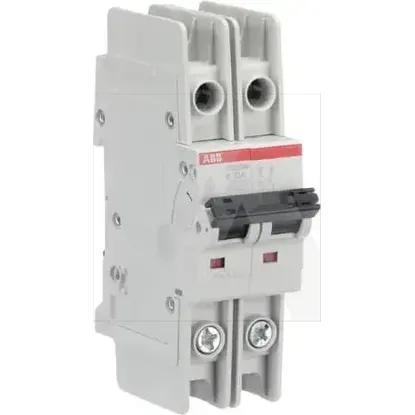

2CDS272347R0427 | SU202MR-K10
Code: 2002861
ManufacturerABB
Catalog number2CDS272347R0427
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779957410
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Flush-mounted installationNo
Explosion-proofNo
Rated insulation voltage Ui440V
Power loss4.2W
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings2
Frequency50 - 60Hz
Pollution degree3
Concurrently switching neutral conductorNo
Voltage typeOther
Ambient temperature during operating-25 - 55°C
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Current limiting class3
Number of protected poles2
Rated voltage400V
Built-in depth69mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated current10A
Release characteristicK
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
