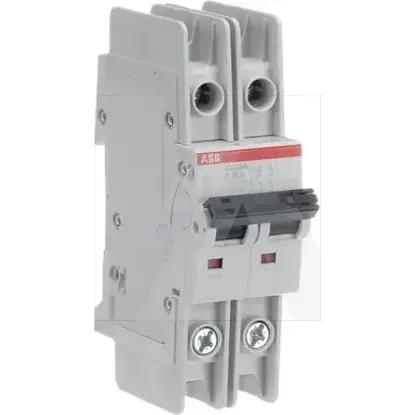

2CDS272347R0467 | SU202MR-K16
Code: 2002864
ManufacturerABB
Catalog number2CDS272347R0467
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779957472
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage400V
Built-in depth69mm
Voltage typeOther
Pollution degree3
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Current limiting class3
Frequency50 - 60Hz
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Over voltage category3
Width in number of modular spacings2
Flush-mounted installationNo
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Ambient temperature during operating-25 - 55°C
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss5W
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current16A
Release characteristicK
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
