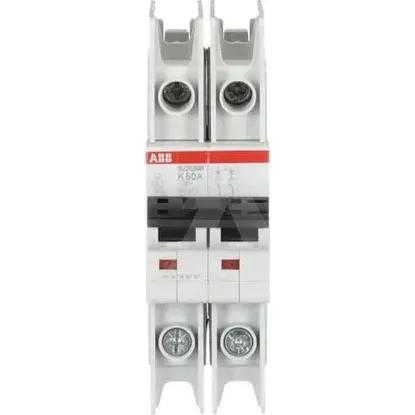

2CDS272347R0587 | SU202MR-K60
Code: 2002872
ManufacturerABB
Catalog number2CDS272347R0587
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779957632
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Current limiting class3
Over voltage category3
Rated insulation voltage Ui440V
Built-in depth69mm
Width in number of modular spacings2
Explosion-proofNo
Power loss9.8W
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Rated voltage400V
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 55°C
Number of protected poles2
Additional equipment possibleYes
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Voltage typeOther
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Rated current60A
Release characteristicK
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
