Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Width in number of modular spacings2.0
Pollution degree3
Rated voltage400V
Rated current63A
Voltage typeOther
Current limiting class3
Release characteristicK
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Explosion-proofNo
Built-in depth69mm
Over voltage category3
Frequency50 - 60Hz
Power loss10.8W
Connectable conductor cross section solid-core0.75 - 35mm²
Number of poles (total)2
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 55°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

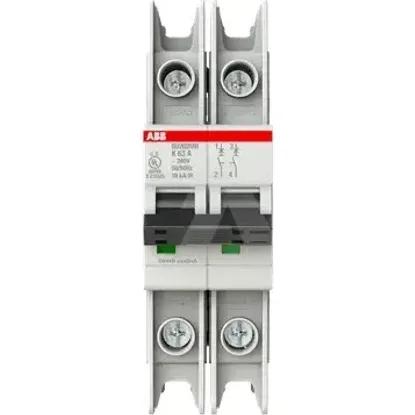

2CDS272347R0607 | SU202MR-K63
