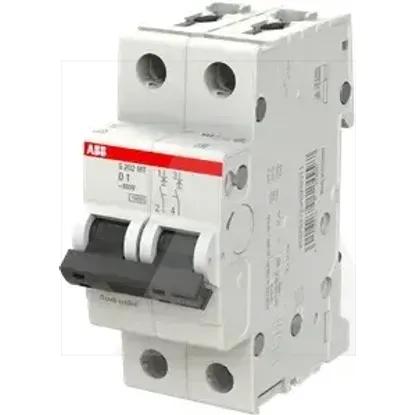

2CDS272445R0011 | S202MT-D1
Code: 2002874
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicD
Rated current1A
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Voltage typeOther
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)2
Built-in depth69mm
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Power loss2.8W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Current limiting class3
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Concurrently switching neutral conductorNo
Pollution degree3
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Flush-mounted installationNo
Width in number of modular spacings2.0
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
