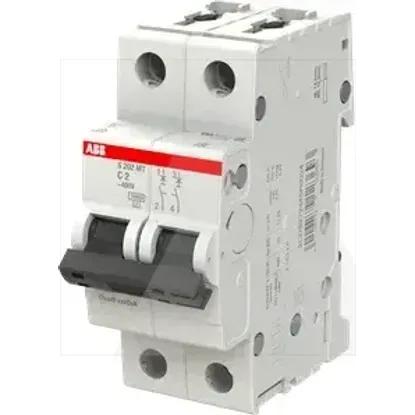

2CDS272445R0024 | S202MT-C2
Code: 2002878
ManufacturerABB
Catalog number2CDS272445R0024
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123693
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage400V
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Explosion-proofNo
Current limiting class3
Ambient temperature during operating-40 - 70°C
Width in number of modular spacings2
Over voltage category3
Rated insulation voltage Ui440V
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Power loss3.6W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Number of protected poles2
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current2A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
