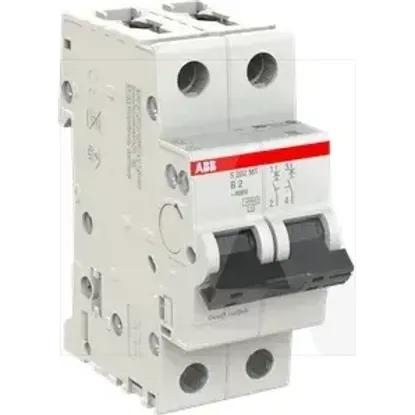

2CDS272445R0025 | S202MT-B2
Code: 2002879
ManufacturerABB
Catalog number2CDS272445R0025
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122436
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Built-in depth69mm
Current limiting class3
Frequency50 - 60Hz
Over voltage category3
Voltage typeOther
Rated voltage400V
Explosion-proofNo
Pollution degree3
Width in number of modular spacings2
Power loss3.6W
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles2
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated current2A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
