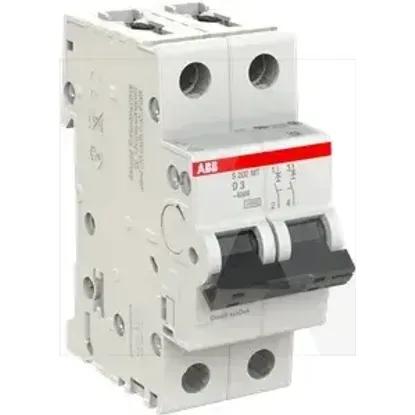

2CDS272445R0031 | S202MT-D3
Code: 2002880
ManufacturerABB
Catalog number2CDS272445R0031
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779125024
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated voltage400V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Over voltage category3
Additional equipment possibleYes
Explosion-proofNo
Pollution degree3
Flush-mounted installationNo
Power loss2.4W
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Width in number of modular spacings2
Current limiting class3
Number of protected poles2
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current3A
Release characteristicD
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
