Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage400V
Release characteristicC
Rated insulation voltage Ui440V
Built-in depth69mm
Rated current3A
Current limiting class3
Frequency50 - 60Hz
Voltage typeOther
Over voltage category3
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Width in number of modular spacings2.0
Flush-mounted installationNo
Pollution degree3
Explosion-proofNo
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Degree of protection (IP)IP20
Power loss2.6W
Connectable conductor cross section solid-core0.75 - 35mm²
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

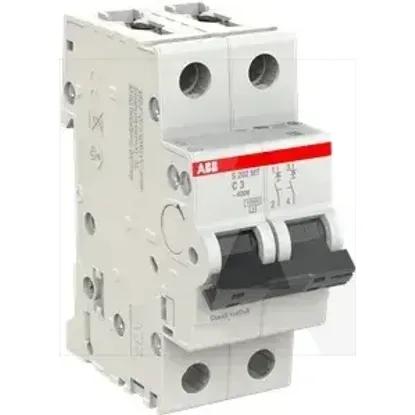

2CDS272445R0034 | S202MT-C3
