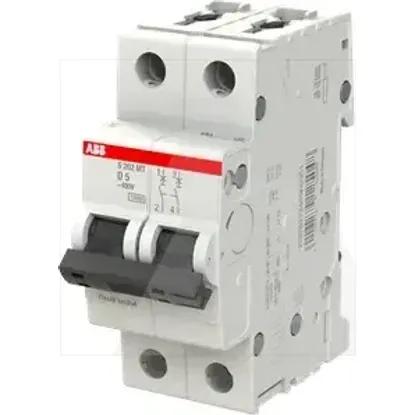

2CDS272445R0051 | S202MT-D5
Code: 2002886
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicD
Built-in depth69mm
Rated current5A
Number of protected poles2
Rated voltage400V
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of poles (total)2
Voltage typeOther
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Frequency50 - 60Hz
Current limiting class3
Power loss-W
Concurrently switching neutral conductorNo
Width in number of modular spacings2.0
Flush-mounted installationNo
Over voltage category3
Additional equipment possibleYes
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
