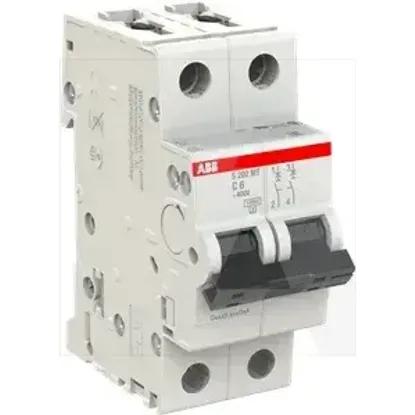

2CDS272445R0064 | S202MT-C6
Code: 2002890
ManufacturerABB
Catalog number2CDS272445R0064
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123730
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Rated voltage400V
Built-in depth69mm
Pollution degree3
Rated insulation voltage Ui440V
Width in number of modular spacings2
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Current limiting class3
Concurrently switching neutral conductorNo
Over voltage category3
Degree of protection (IP)IP20
Number of protected poles2
Power loss4W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Additional equipment possibleYes
Frequency50 - 60Hz
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated current6A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
