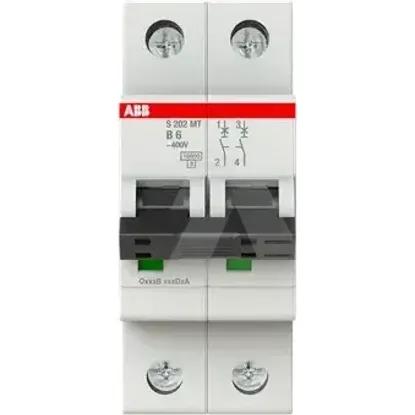

2CDS272445R0065 | S202MT-B6
Code: 2002891
ManufacturerABB
Catalog number2CDS272445R0065
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122474
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Frequency50 - 60Hz
Rated voltage400V
Built-in depth69mm
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Explosion-proofNo
Degree of protection (IP)IP20
Width in number of modular spacings2
Number of protected poles2
Over voltage category3
Pollution degree3
Power loss4W
Current limiting class3
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current6A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
