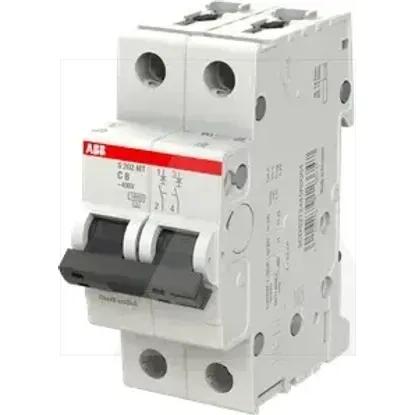

2CDS272445R0084 | S202MT-C8
Code: 2002893
ManufacturerABB
Catalog number2CDS272445R0084
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123747
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Frequency50 - 60Hz
Voltage typeOther
Rated voltage400V
Rated insulation voltage Ui440V
Current limiting class3
Built-in depth69mm
Power loss3W
Degree of protection (IP)IP20
Explosion-proofNo
Over voltage category3
Number of protected poles2
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated current8A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
