Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage400V
Rated current10A
Release characteristicC
Frequency50 - 60Hz
Voltage typeOther
Built-in depth69mm
Pollution degree3
Power loss4.2W
Over voltage category3
Current limiting class3
Rated insulation voltage Ui440V
Width in number of modular spacings2.0
Concurrently switching neutral conductorNo
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)2
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

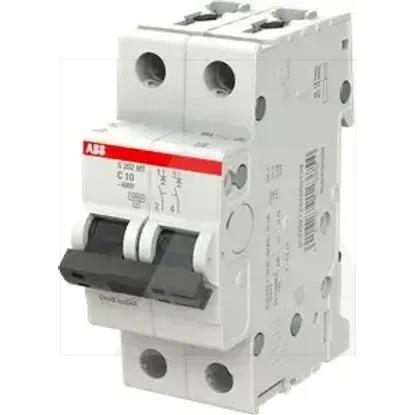

2CDS272445R0104 | S202MT-C10
