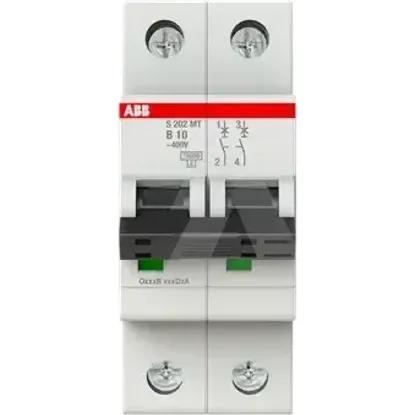

2CDS272445R0105 | S202MT-B10
Code: 2002898
ManufacturerABB
Catalog number2CDS272445R0105
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122498
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Rated voltage400V
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles2
Explosion-proofNo
Over voltage category3
Pollution degree3
Width in number of modular spacings2
Power loss4.2W
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current10A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
