Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated current0.3A
Built-in depth69mm
Over voltage category3
Rated voltage440V
Rated insulation voltage Ui440V
Release characteristicK
Current limiting class3
Frequency50 - 60Hz
Power loss3.4W
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of protected poles2
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Flush-mounted installationNo
Width in number of modular spacings2.0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

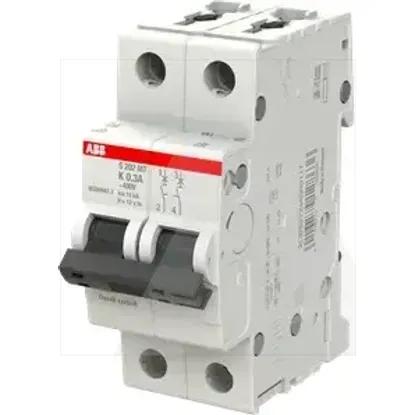

2CDS272445R0117 | S202MT-K0,3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Rated current
0.3A
Built-in depth
69mm
Over voltage category
3
Rated voltage
440V
Rated insulation voltage Ui
440V
Release characteristic
K
Current limiting class
3
Frequency
50 .. 60Hz
Power loss
3.4W
Explosion-proof
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Number of protected poles
2
Ambient temperature during operating
-40 .. 70°C
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Additional equipment possible
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Number of poles (total)
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Connectable conductor cross section solid-core
0.75 .. 35mm²
Pollution degree
3
Flush-mounted installation
Width in number of modular spacings
2.0
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
