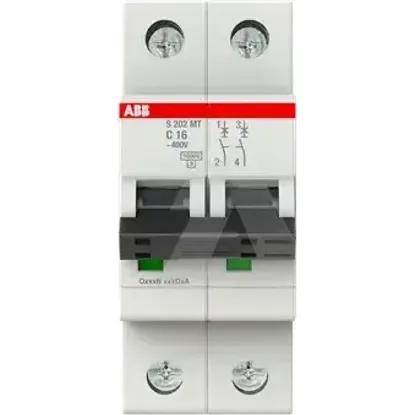

2CDS272445R0164 | S202MT-C16
Code: 2002909
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Release characteristicC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of poles (total)2
Number of protected poles2
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss5W
Frequency50 - 60Hz
Rated current16A
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Pollution degree3
Flush-mounted installationNo
Additional equipment possibleYes
Over voltage category3
Width in number of modular spacings2.0
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
