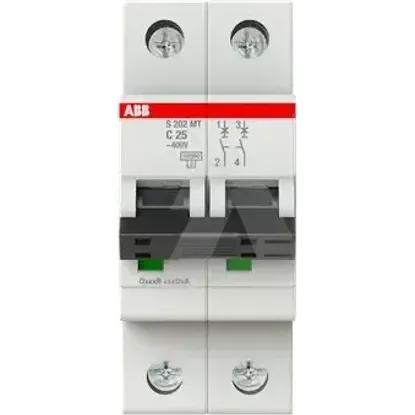

2CDS272445R0254 | S202MT-C25
Code: 2002919
ManufacturerABB
Catalog number2CDS272445R0254
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123808
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Frequency50 - 60Hz
Rated voltage400V
Built-in depth69mm
Voltage typeOther
Power loss6.4W
Over voltage category3
Pollution degree3
Rated insulation voltage Ui440V
Current limiting class3
Width in number of modular spacings2
Explosion-proofNo
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of protected poles2
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Rated current25A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
