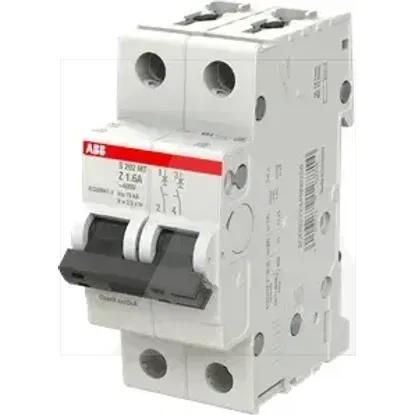

2CDS272445R0258 | S202MT-Z1,6
Code: 2002922
ManufacturerABB
Catalog number2CDS272445R0258
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779127714
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Power loss5.6W
Degree of protection (IP)IP20
Explosion-proofNo
Width in number of modular spacings2
Current limiting class3
Over voltage category3
Built-in depth69mm
Number of protected poles2
Rated insulation voltage Ui440V
Rated voltage440V
Pollution degree3
Frequency50 - 60Hz
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Flush-mounted installationNo
Additional equipment possibleYes
Rated current1.6A
Release characteristicZ
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
