Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated current2A
Explosion-proofNo
Built-in depth69mm
Release characteristicZ
Voltage typeOther
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss5W
Concurrently switching neutral conductorNo
Rated insulation voltage Ui440V
Pollution degree3
Number of protected poles2
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Over voltage category3
Current limiting class3
Rated voltage440V
Flush-mounted installationNo
Number of poles (total)2
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

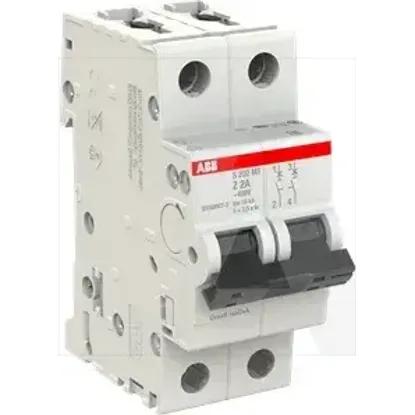

2CDS272445R0278 | S202MT-Z2
