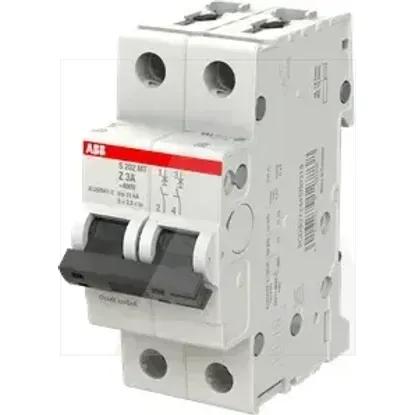

2CDS272445R0318 | S202MT-Z3
Code: 2002929
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Built-in depth69mm
Rated voltage440V
Release characteristicZ
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Number of protected poles2
Rated current3A
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Voltage typeOther
Power loss4.8W
Concurrently switching neutral conductorNo
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Pollution degree3
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
