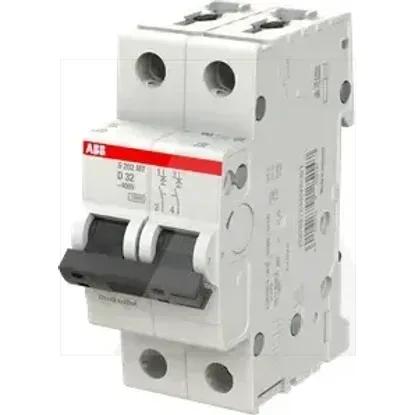

2CDS272445R0321 | S202MT-D32
Code: 2002930
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)2
Number of protected poles2
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated voltage400V
Release characteristicD
Voltage typeOther
Rated current32A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Current limiting class3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated insulation voltage Ui440V
Power loss7.4W
Width in number of modular spacings2.0
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Additional equipment possibleYes
Over voltage category3
Explosion-proofNo
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
