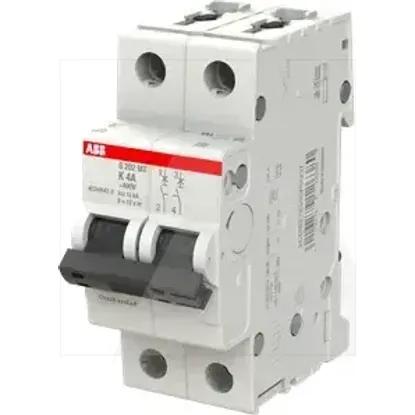

2CDS272445R0337 | S202MT-K4
Code: 2002933
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss3.4W
Frequency50 - 60Hz
Current limiting class3
Rated current4A
Rated voltage440V
Voltage typeOther
Release characteristicK
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of protected poles2
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Built-in depth69mm
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Flush-mounted installationNo
Explosion-proofNo
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Over voltage category3
