Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Rated voltage400V
Over voltage category3
Built-in depth69mm
Frequency50 - 60Hz
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Explosion-proofNo
Voltage typeOther
Width in number of modular spacings2.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated current35A
Release characteristicD
Number of protected poles2
Current limiting class3
Flush-mounted installationNo
Additional equipment possibleYes
Power loss-W
Ambient temperature during operating-40 - 70°C
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

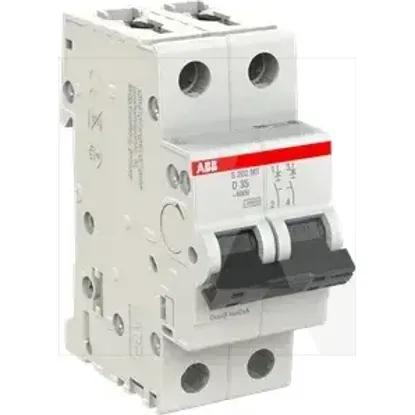

2CDS272445R0351 | S202MT-D35
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Pollution degree
3
Connectable conductor cross section solid-core
0.75 .. 35mm²
Rated voltage
400V
Over voltage category
3
Built-in depth
69mm
Frequency
50 .. 60Hz
Degree of protection (IP)
IP20
Rated insulation voltage Ui
440V
Concurrently switching neutral conductor
Explosion-proof
Voltage type
Other
Width in number of modular spacings
2.0
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated current
35A
Release characteristic
D
Number of protected poles
2
Current limiting class
3
Flush-mounted installation
Additional equipment possible
Power loss
-W
Ambient temperature during operating
-40 .. 70°C
Number of poles (total)
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
