Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current35A
Built-in depth69mm
Voltage typeOther
Rated voltage400V
Over voltage category3
Flush-mounted installationNo
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Pollution degree3
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Power loss-W
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated insulation voltage Ui440V
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Degree of protection (IP)IP20
Number of poles (total)2
Release characteristicB
Number of protected poles2
Width in number of modular spacings2.0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

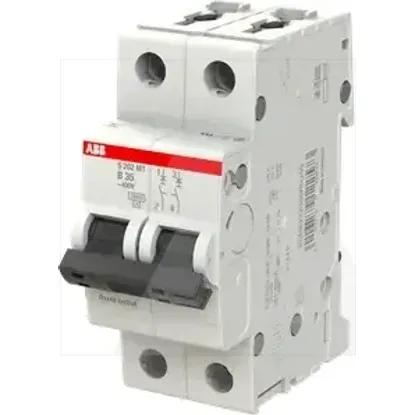

2CDS272445R0355 | S202MT-B35
