Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage440V
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Pollution degree3
Release characteristicK
Explosion-proofNo
Over voltage category3
Rated insulation voltage Ui440V
Current limiting class3
Rated current6A
Power loss3.8W
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Number of protected poles2
Number of poles (total)2
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

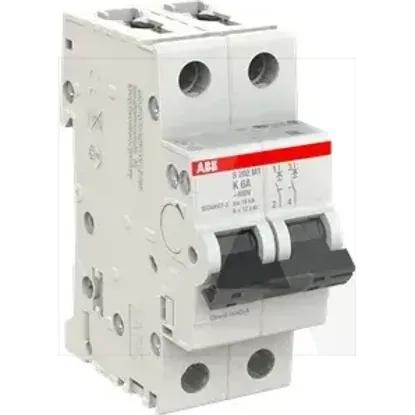

2CDS272445R0377 | S202MT-K6
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
440V
Voltage type
Other
Built-in depth
69mm
Frequency
50 .. 60Hz
Pollution degree
3
Release characteristic
K
Explosion-proof
Over voltage category
3
Rated insulation voltage Ui
440V
Current limiting class
3
Rated current
6A
Power loss
3.8W
Width in number of modular spacings
2.0
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Number of protected poles
2
Number of poles (total)
2
Ambient temperature during operating
-40 .. 70°C
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Flush-mounted installation
Connectable conductor cross section solid-core
0.75 .. 35mm²
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
