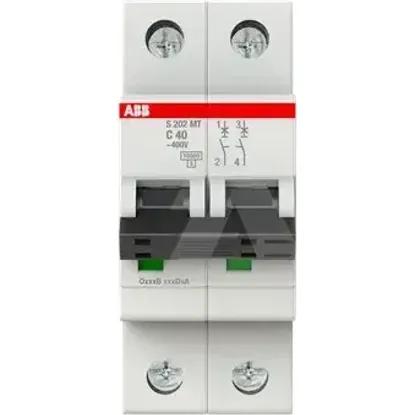

2CDS272445R0404 | S202MT-C40
Code: 2002943
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage400V
Rated current40A
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Release characteristicC
Number of protected poles2
Voltage typeOther
Built-in depth69mm
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Power loss9.6W
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Over voltage category3
Pollution degree3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings2.0
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Explosion-proofNo
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS272445R0404 | S202MT-C40
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
400V
Rated current
40A
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Release characteristic
C
Number of protected poles
2
Voltage type
Other
Built-in depth
69mm
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4kV
Power loss
9.6W
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Over voltage category
3
Pollution degree
3
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
0.75 .. 35mm²
Width in number of modular spacings
2.0
Additional equipment possible
Ambient temperature during operating
-40 .. 70°C
Flush-mounted installation
Explosion-proof
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.75 .. 25mm²
